Subject-specific vagus (SSV) scaffolds

This resource provides:

• A background of SPARC Phase 2 REVA initiative and associated datasets
• An overview of the workflows for generating subject-specific vagus (SSV) scaffolds from digitized vagus nerve segments
• Information on the coordinate systems and anatomical information contained within an SSV scaffold
• Tutorials for visualizing and analyzing SSV scaffolds
• Guidance on mapping SSV scaffolds into whole-body configurations
• Examples of using SSV scaffolds to investigate population-level nerve anatomy and nerve-organ relationships
• Links to published datasets, software and documentation

What can I do with an SSV scaffold?

SSV scaffolds provide a standardized three-dimensional representation of individual human vagus nerves while preserving subject-specific anatomical variation. They provide a common coordinate framework for integrating and comparing anatomical and multimodal data across subjects.

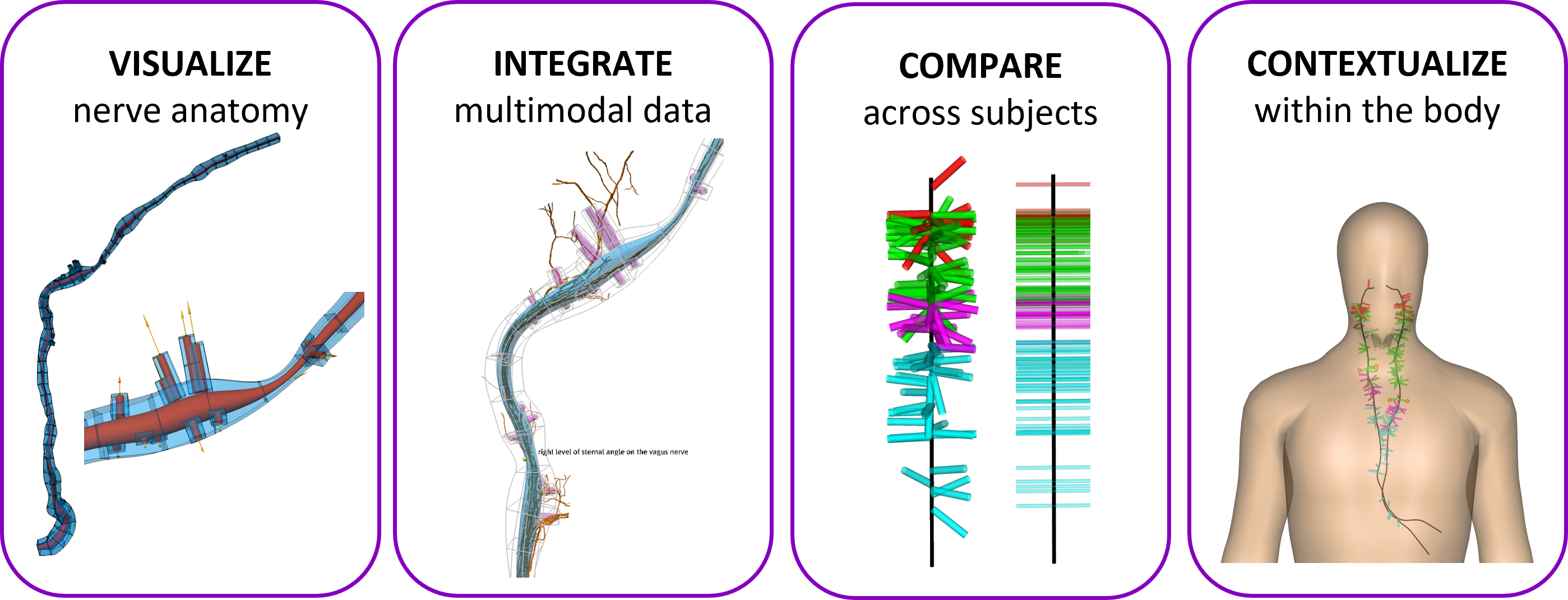

An SSV scaffold can be used to:

• Visualize anatomical relationships between the nerve trunk, branches and anatomical landmarks
• Characterize branch anatomy, including branch origins and initial directions
• Integrate multimodal data, including fascicular network representations and histological images
• Compare anatomy across samples using common vagus material coordinates
• Export anatomical representations for visualization, presentations, publications or computational analysis
• Generate anatomical flatmaps for organizing and exploring multimodal datasets
• Map into an in-body configuration to investigate nerve-organ relationships

SPARC Phase 2 REVA

The objective of SPARC Phase 2 REVA initiative is to characterize inter-subject variability in the human vagus nerve and provide insights into the detailed fascicular and microscopic structure and function of the nerve. The two REVA awardee teams - the Feinstein Institute for Medical Research & Temple University, and Case Western Reserve University & Duke University - have been producing high-resolution multimodal imaging and segmentation datasets of vagus nerves from a large cohort of human subjects.

For the purposes of this document, we focus on data from 29 cadavers that have been published by the Feinstein Institute as a collection of datasets (Human vagus nerve anatomical reconstruction using microCT, immunohistochemistry, and ultrasound).

The SPARC Data & Resource Center (DRC) works closely with the REVA teams to provide dataset curation and knowledge management, dataset storage, anatomical and functional mapping, simulation services, and access via the SPARC Portal.

Overview of the SSV scaffold generation workflow

An SSV scaffold is generated from digitized nerve segments from an ex-vivo specimen with the following workflows, which are implemented using the open-source Scaffold Mapping Tools:

• Data preparation
• Segmentation stitching
• SSV scaffold creation

The subject-specific vagus scaffolds are publicly available in Scaffold map - Human Vagus Nerve. The corresponding workflows are also available for each sample in the dataset's primary folder, with the output files from each workflow step in the derivative folder.

Data preparation

The raw data used to build the vagus nerve scaffolds are derived from ex-vivo specimens that REVA teams cut into segments for micro-CT imaging, followed by digitization and annotation of anatomical features and orientations, as shown in Figure 1. These annotated segmentation files can typically be found in REVA datasets in either XML or CSV format.

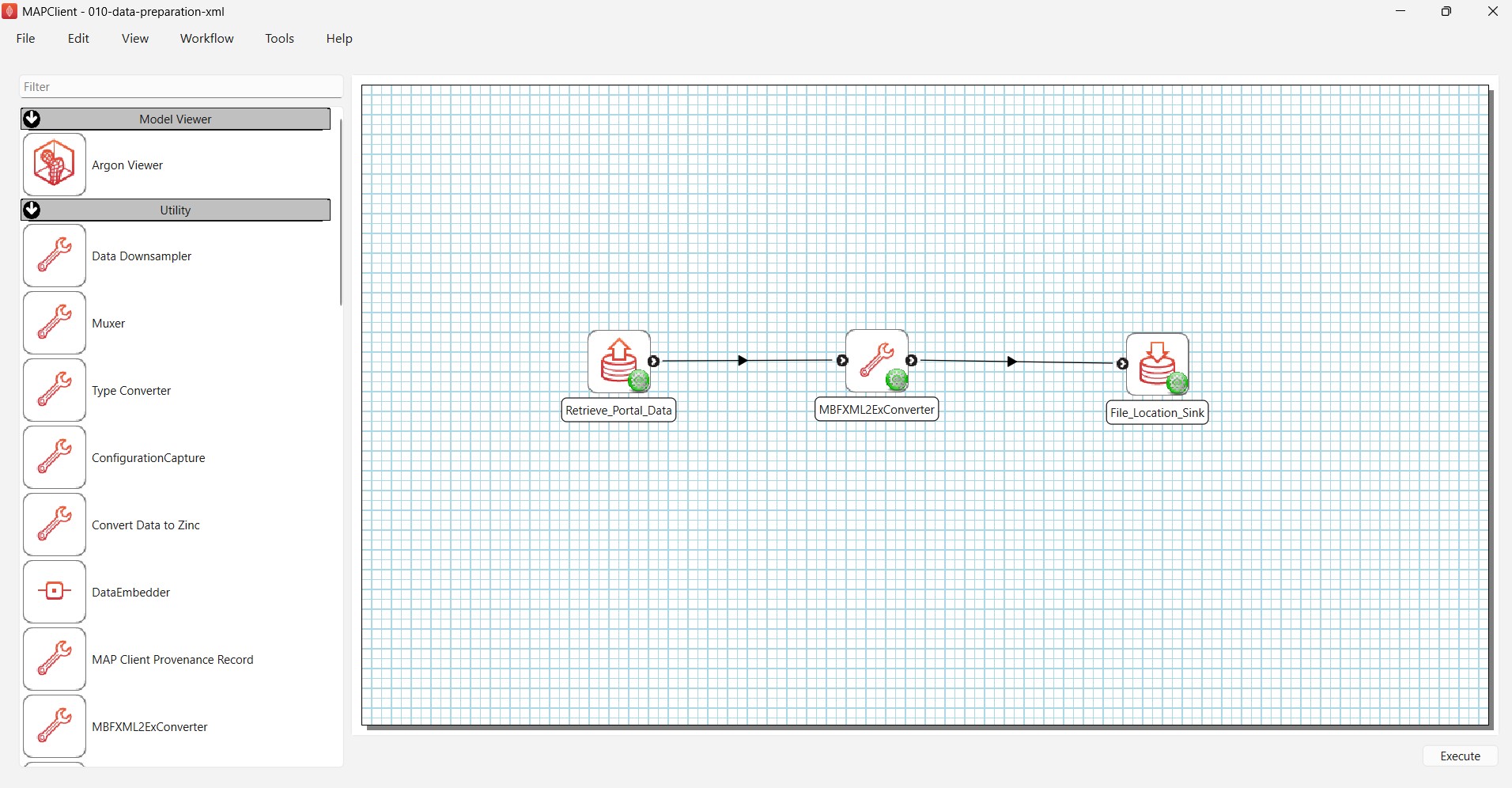

For each sample, its digitized segments can be retrieved directly from the SPARC Portal using the Retrieve Portal Data plugin and the DOI of the sample dataset. The retrieved segmentation files are then converted to EXF format, which allows them to be ingested by the Scaffold Mapping Tools. The data preparation workflow is shown in Figure 2.

Segmentation stitching

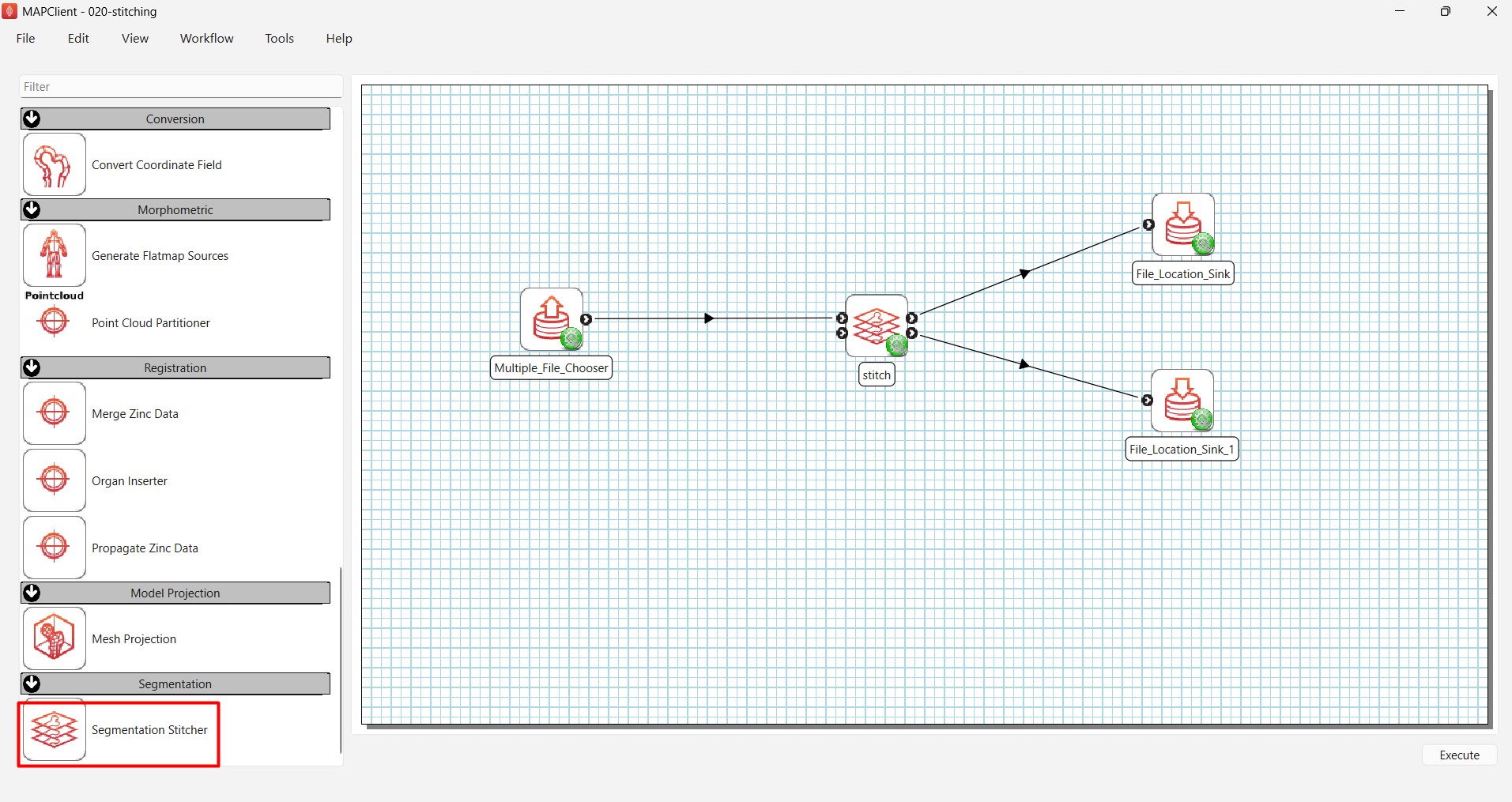

The digitized segments from each sample nerve are stitched together to form a continuous nerve in a non-body configuration using a semi-automated process. This step is performed with the Segmentation Stitcher plugin from the Scaffold Mapping Tools as shown in Figure 3.

The Segmentation Stitcher reads all segment files for a sample and provides an interactive environment for positioning the segments in the correct anatomical order, as shown in Figure 4. The fascicles (orange) and nerve trunk (blue) on the end face of each segment are then joined to their corresponding fiber on the start face of the next segment. Connections can be made using the built-in shape-matching optimization algorithm or manually using fascicle correspondence information provided by the REVA teams.

The result of this step is a continuous representation of the vagus nerve that preserves the anatomical features and branching information contained in the original digitized segments.

SSV Scaffold creation

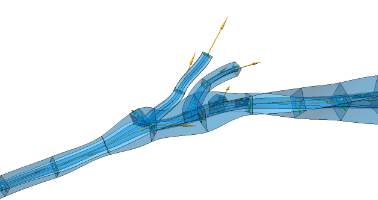

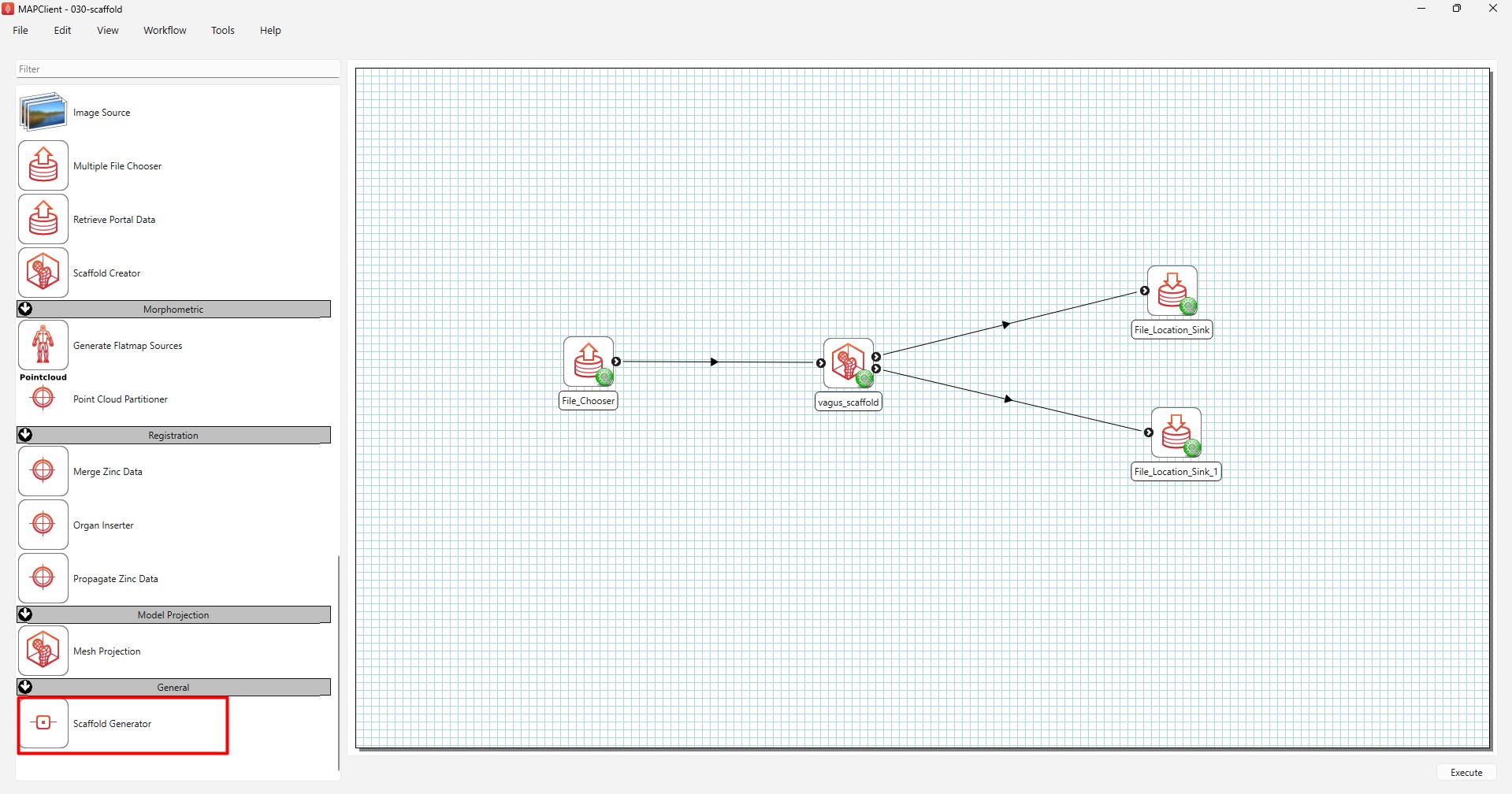

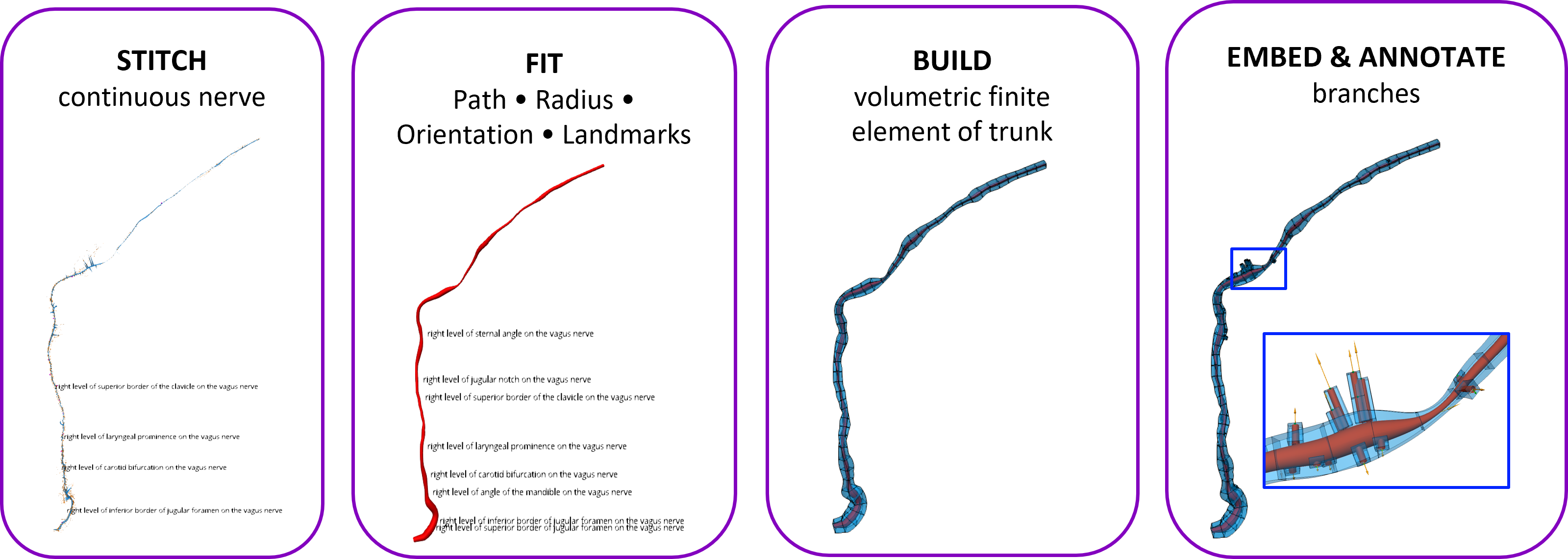

The Scaffold creator is then used to fit a standardized nerve trunk to the path, radius, anatomical landmarks and orientation of the stitched data, as shown in Figure 5.

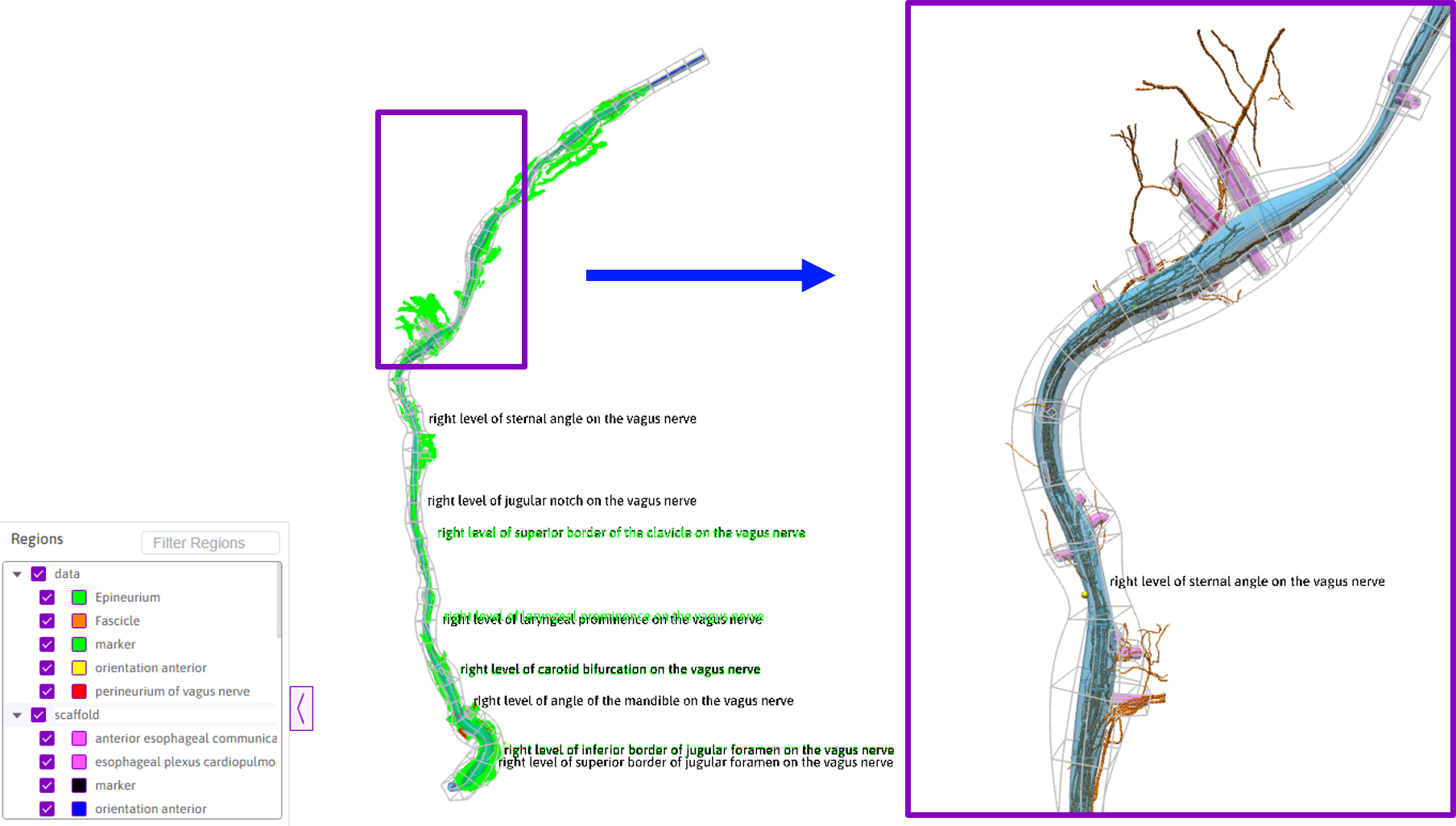

The resulting SSV scaffold is a volumetric finite element model of the individual nerve. Branching information contained in the stitched data is captured during the fitting process. Branch starting locations and initial directions are embedded within the trunk volume, as shown in Figure 6. Anatomical feature annotations from the stitched data are also transferred to the scaffold.

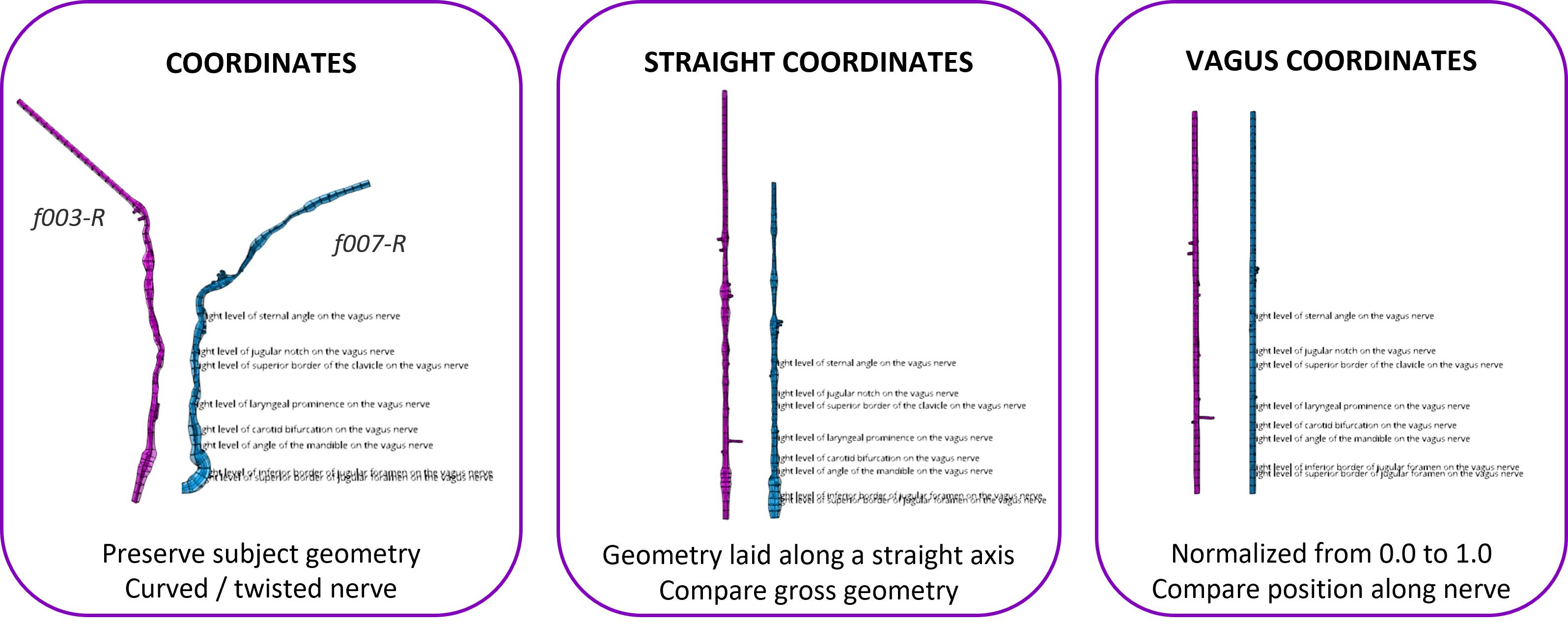

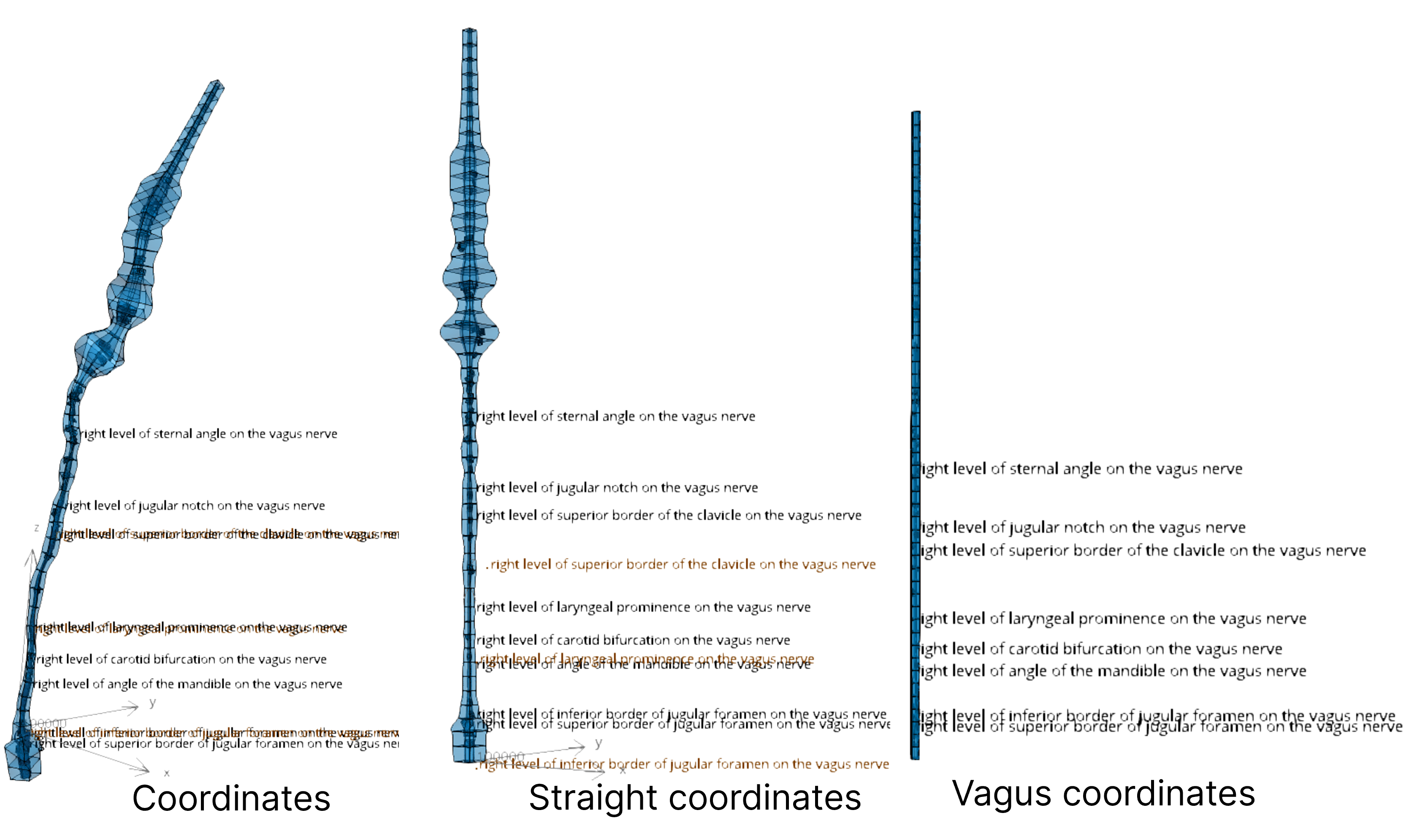

Each SSV scaffold is defined with three coordinate fields: coordinates, straight coordinates and vagus coordinates, as shown in Figure 7.

1. coordinates define the scaffold's geometry and are typically derived from stitched data.
2. straight coordinates provide the corresponding geometric coordinates as if the same nerve trunk were laid out smoothly along a straight axis without twists. This coordinate system facilitates comparison of the gross anatomy of different nerve samples.
3. vagus coordinates are material coordinates that provide a normalized measure down the vagus nerve, ranging from 0.0 near the brainstem to 1.0 at the end of the scaffold. Anatomical level markers are calibrated at fixed locations along the nerve centroid.

The common vagus coordinates are particularly important for population-level analysis. Although nerve trunk lengths and branching patterns vary substantially between individuals, the normalized coordinate system allows anatomical features from different subjects to be mapped onto a common reference space.

Further technical information about the vagus nerve scaffold is available in the Vagus Scaffold Documentation.

Using subject-specific vagus scaffolds

Population-level analysis

The vagus coordinates allow anatomical features from multiple SSV scaffolds to be compared directly. For example, branch origins and initial directions can be mapped from individual subjects into the common vagus coordinate system to investigate inter-subject variation.

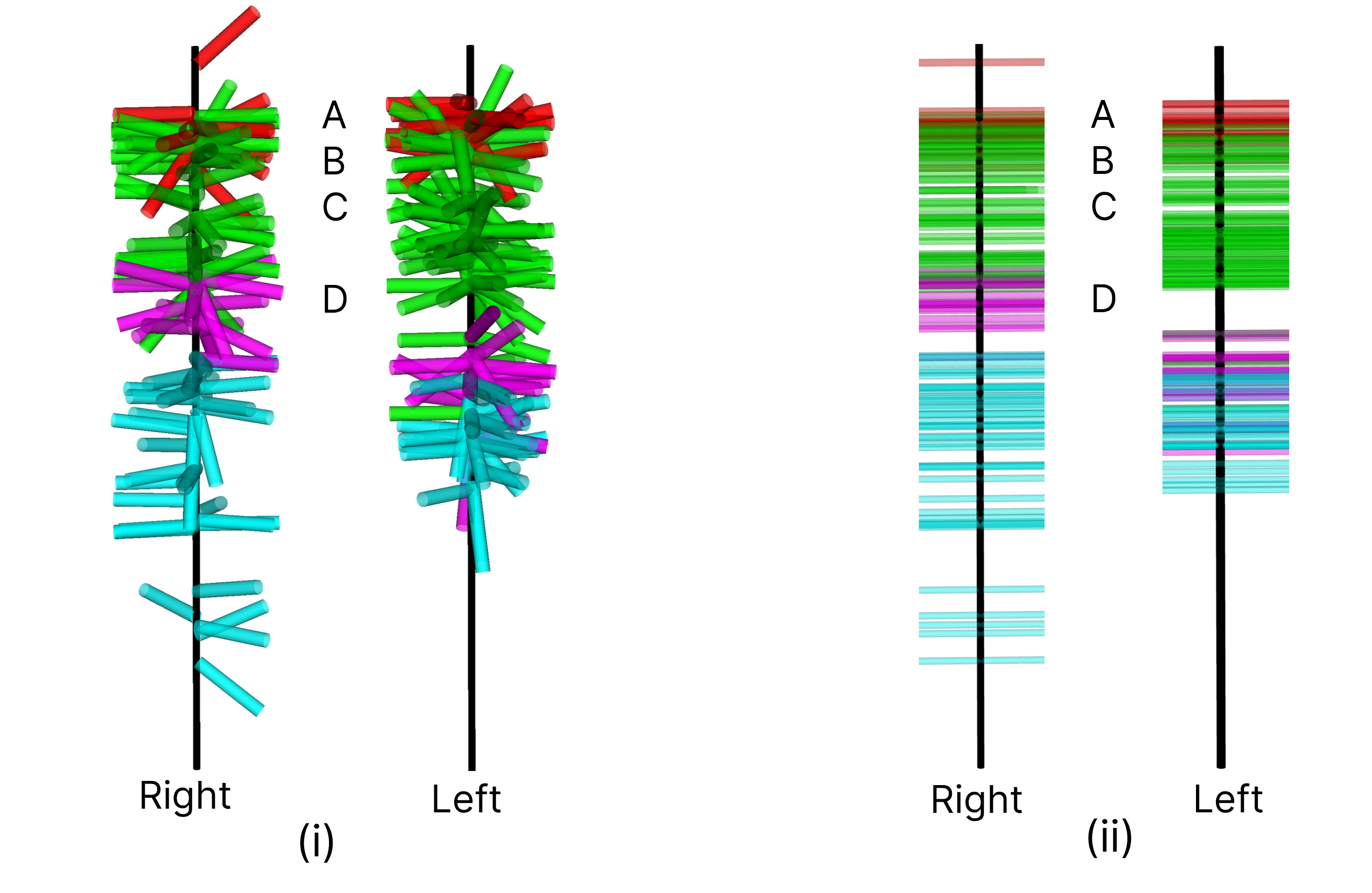

Figure 8(i) shows branch origins and initial directions of SSV scaffolds generated from 20 subjects in the Feinstein collection, where the branches are mapped to the vagus coordinates for qualitative comparison. A simplified representation of branch origin points, shown in Figure 8(ii), provides a direct way to visualize the clustering and overlap among different branch groups.

The steps for creating such visualizations are described in Scaffold Mapping Tools: Using Subject-Specific Vagus (SSV) Scaffolds For Population-Level Analysis. The SPARC-SSV tutorials also provide examples of how to work with SSV scaffolds and extract key information, such as structure maps, branch starting locations and initial directions, for downstream analysis.

Visualization and export

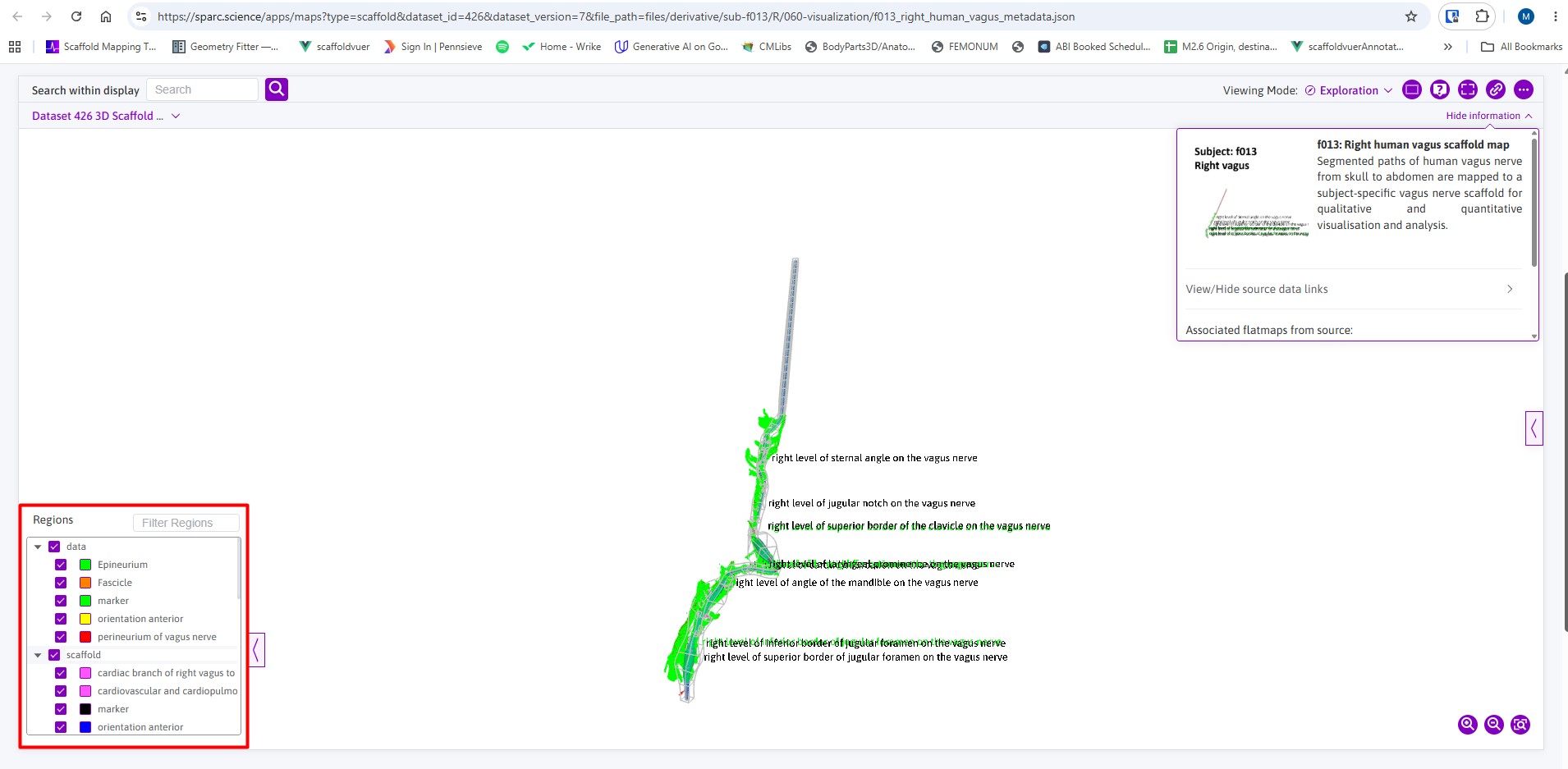

Each SSV scaffold and its associated data can be visualized on the SPARC Portal through the dataset Gallery. The ScaffoldVuer allows users to visualize the scaffold together with the stitched data, as shown in Figure 9. The Regions panel in the bottom-left corner can be used to toggle the visibility of individual graphic objects and interrogate the relationship between the scaffold and the source data.

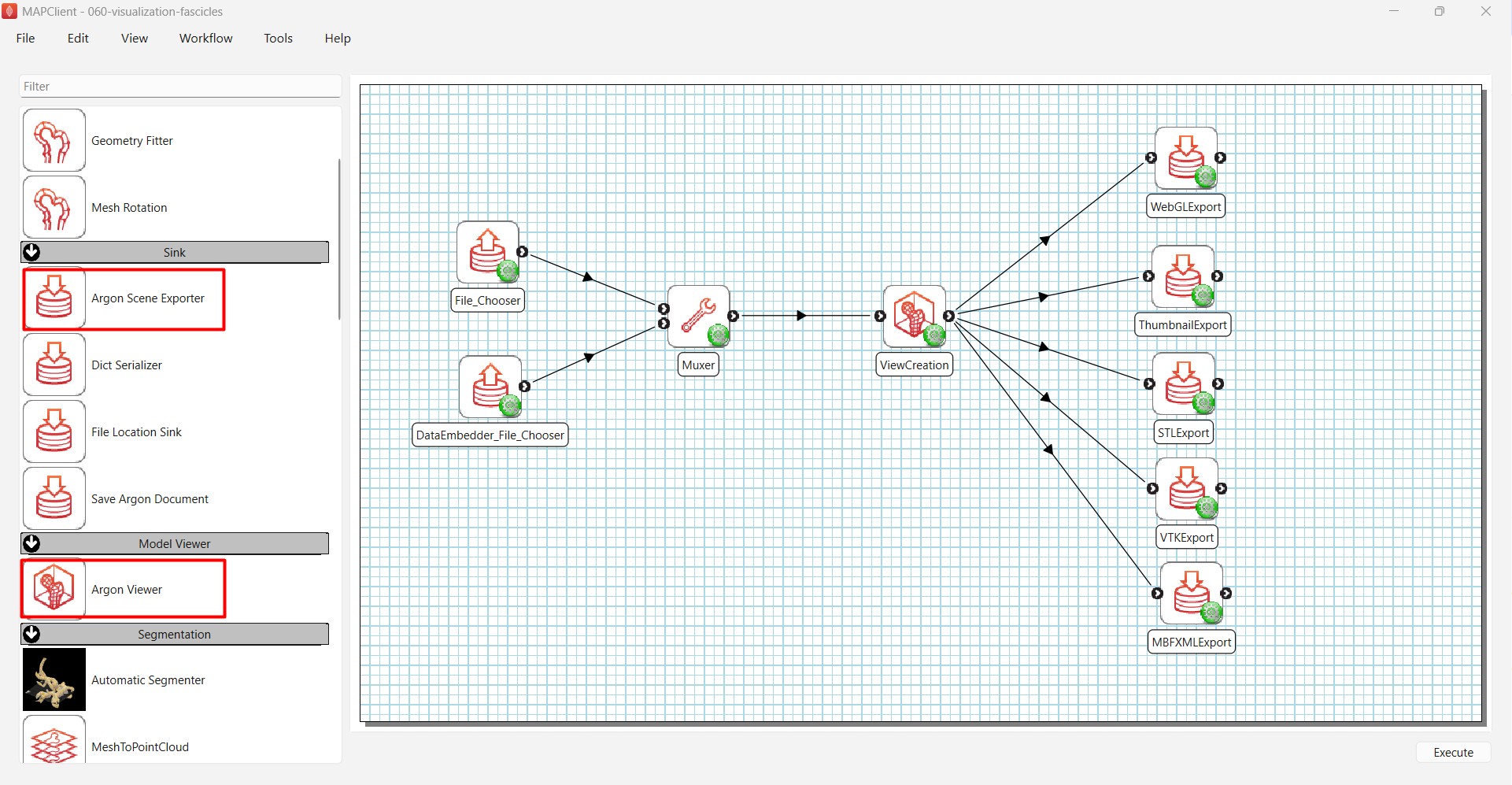

SSV visualizations are generated using Argon Viewer and exported in multiple format using the Argon Scene Exporter plugins, as shown in the workflow in Figure 10.

The scaffold can be exported in:

• WebGL format, for interactive visualization through the SPARC Portal Gallery
• PNG image format for presentation or publication
• STL, VTK, and MBFXML formats for reuse in other applications

Flatmap generation

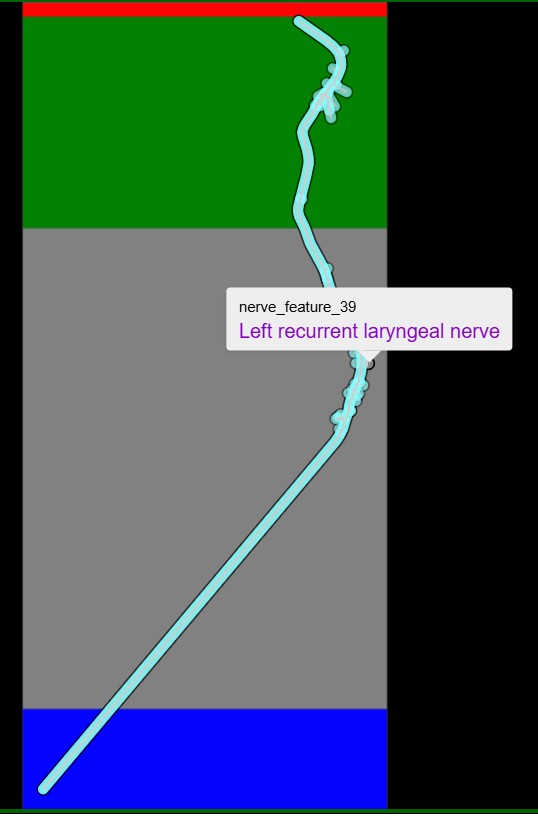

A SSV scaffold can be flattened into an anatomical map using mapmaker. The resulting flatmap is an SVG drawing together with its associated metadata, as shown in Figure 11.

Generated flatmaps are ingested into the Human Vagus Nerve Explorer. Each flatmap provides a spatial framework for referencing histological images and other multimodal data collected for the corresponding sample.

In-body configurations

SSV scaffolds can be remapped into an in-body configuration using subject-specific digitized data or inserted into a reference whole-body scaffold containing an oriented nerve trunk. The procedure for inserting SSV scaffolds into a whole-body scaffold is described in detail in Scaffold Mapping Tools: Inserting Subject-Specific Vagus (SSV) Scaffolds In Whole-Body Scaffold.

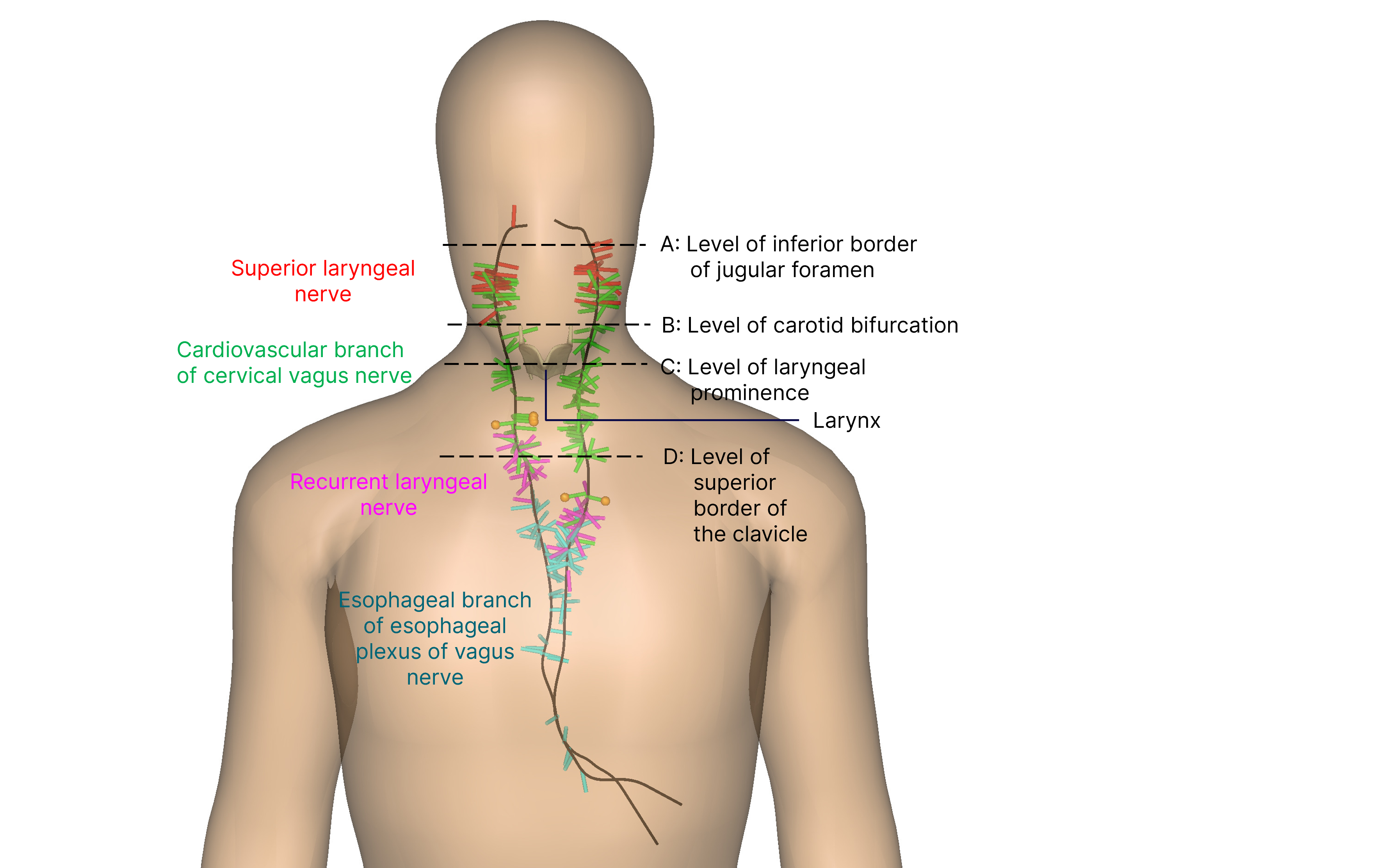

Mapping SSV scaffolds into a common body configuration enables population-level analysis of nerve anatomy in an anatomical context. Figure 12 shows 40 SSV scaffolds from the Feinstein collection mapped onto a reference whole-body scaffold. Branch origins and initial directions can be visualized across subjects, while individual subjects can be highlighted with gold spheres for comparison.

The whole-body scaffold framework can also incorporate existing organ scaffolds, such as the larynx, as shown in Figure 12, allowing the spatial relationships between vagal branches and their target organs to be examined.

By mapping specific vagal branch groups across multiple subject-specific vagus scaffolds and visualizing them together with target organs scaffolds, users can investigate how branches are distributed along the nerve trunk and how they extend and interact spatially with their target organs. This provides a framework for studying nerve-organ relationships at the population level and has potential applications in understanding vagal anatomy, investigating functional innervation patterns and informing the design and placement of stimulation devices.

Datasets and Resources

Summary

Subject-specific vagus scaffolds provide a common anatomical framework for representing and comparing the human vagus nerve while preserving subject-specific variation. Starting with digitized excised nerve segments, the workflow produces a volumetric scaffold that contains the nerve trunk, anatomical landmarks and branching information in a standardized coordinate system.

Once generated, these scaffolds can be used for population-level anatomical analysis, multimodal integration, visualization, flatmap generation, and mapping into whole-body configurations. Integration with organ scaffolds in the whole-body framework enables investigation of the spatial relationships between vagal branches and their target organs.

These capabilities provide a reproducible framework for moving from high-resolution subject-specific vagus nerve data to population-level anatomical analysis and exploration of nerve-organ interactions.
