SCKANNER Tutorial

This gives an overview of how to use SCKANNER to explore the contents of SCKAN to ask specific use case questions.

Please share your feedback

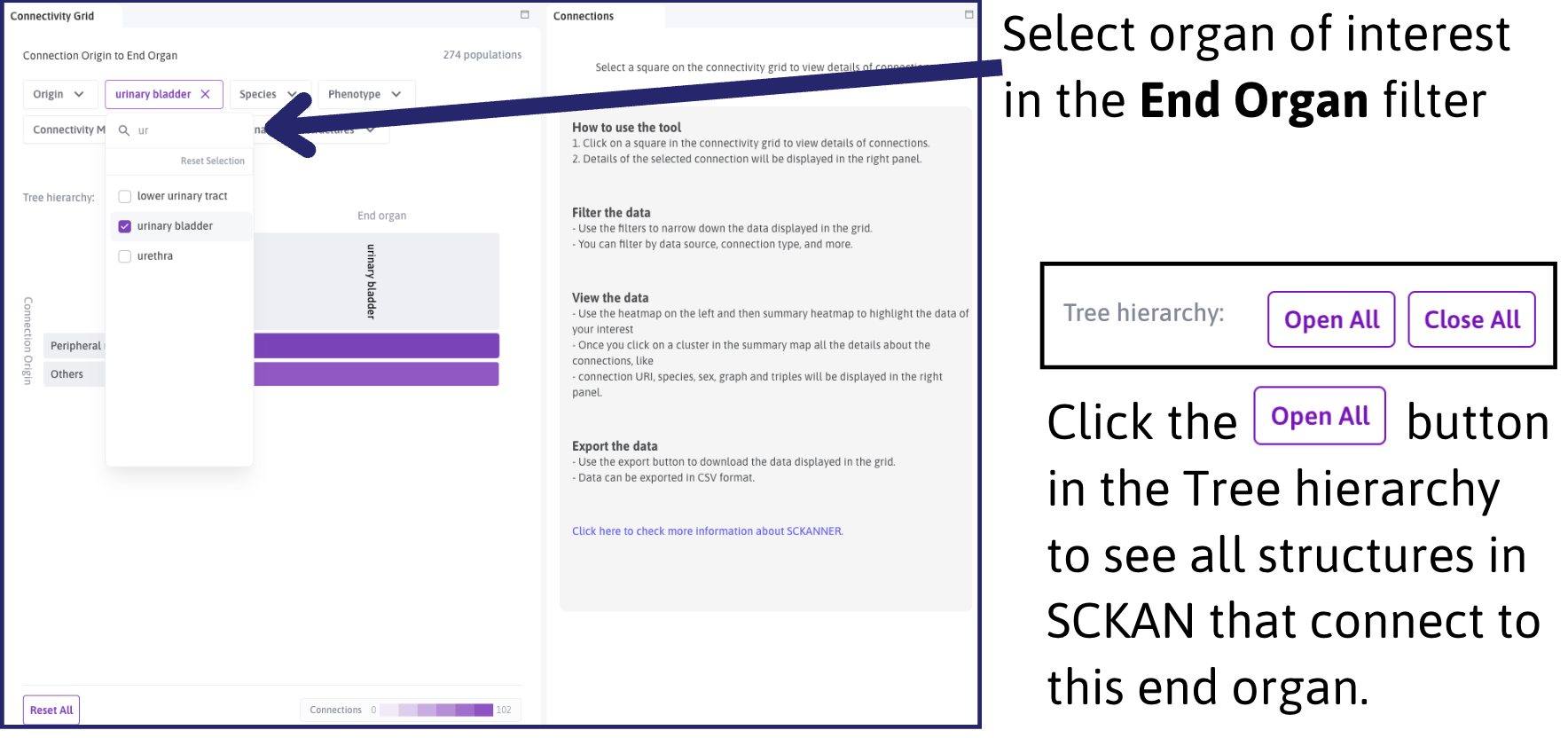

Question 1: What connections terminate in the bladder?

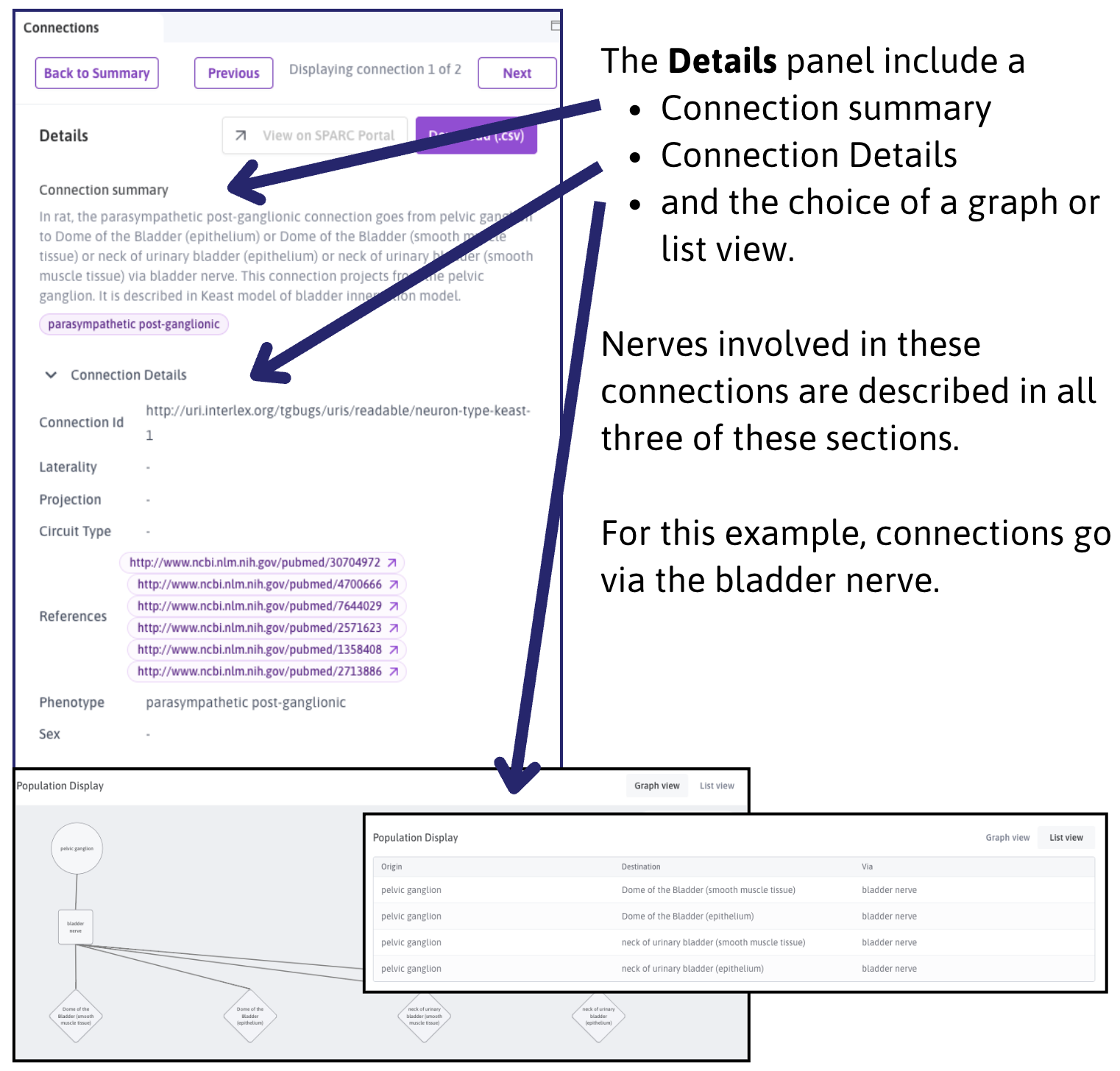

What are the origins of those connections and what are the exact parts of the organ the connections terminate. What nerves are involved in those connections?

Open SCKANNER at https://sckanner.stage.metacell.us/

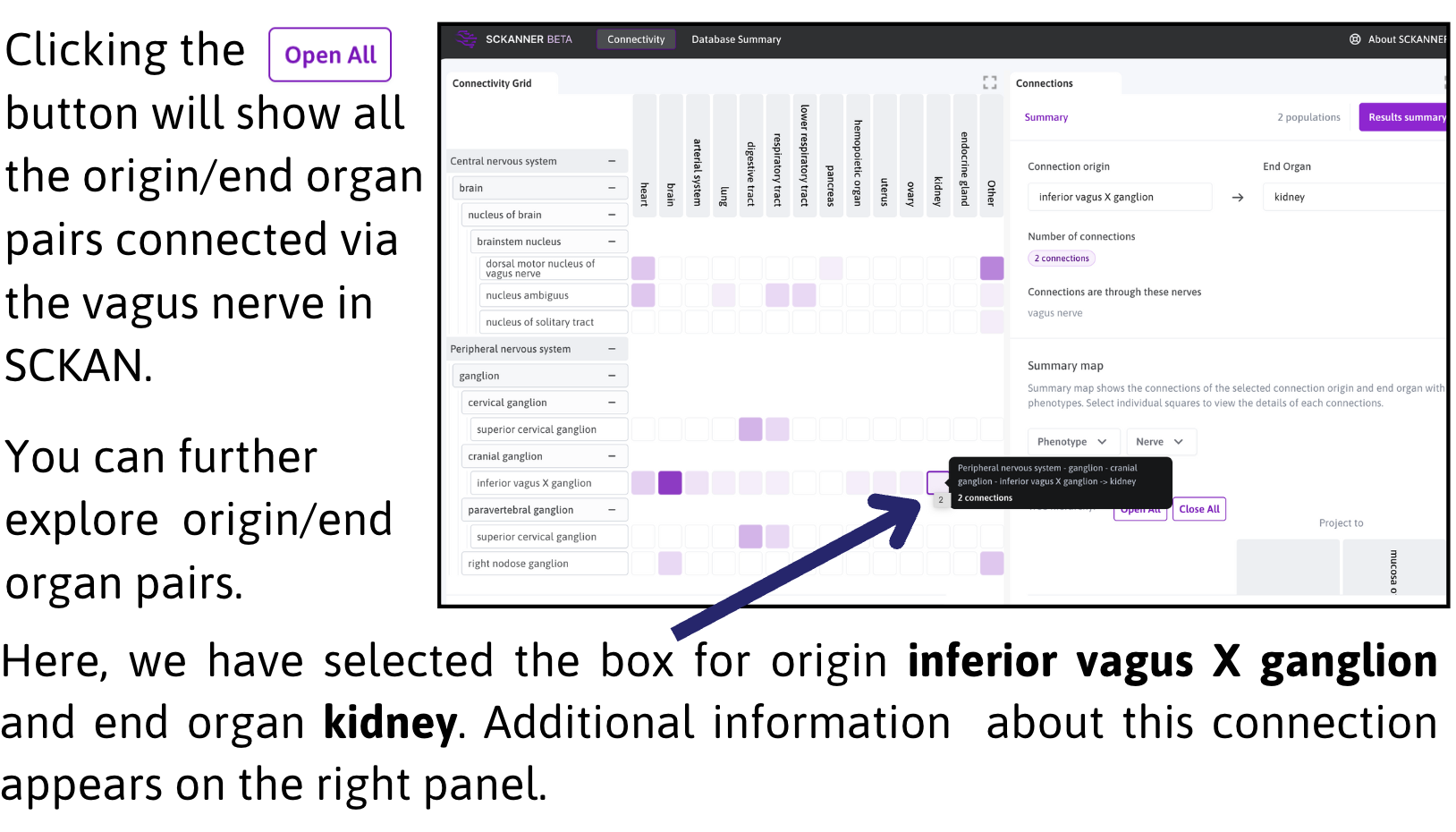

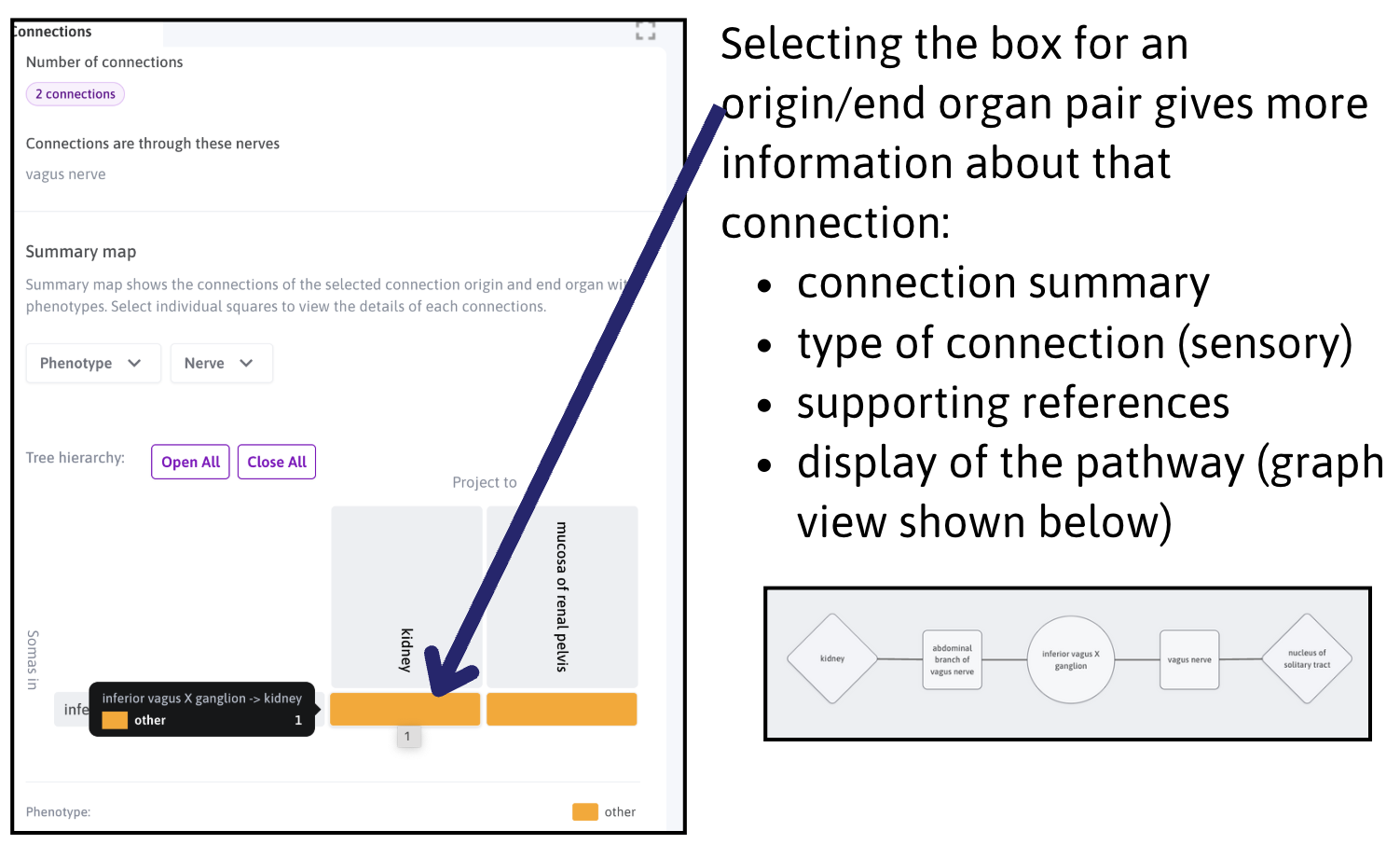

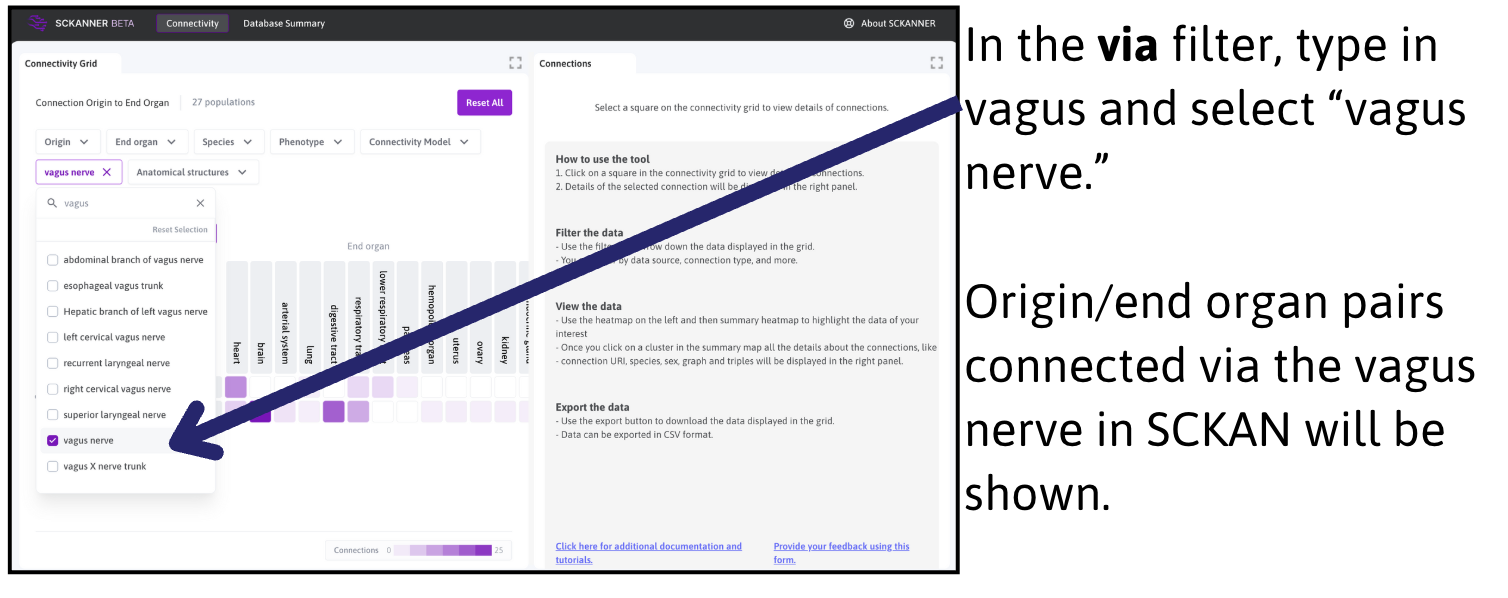

Question 2: What are all origins and destinations of neuron populations traveling through the vagus?

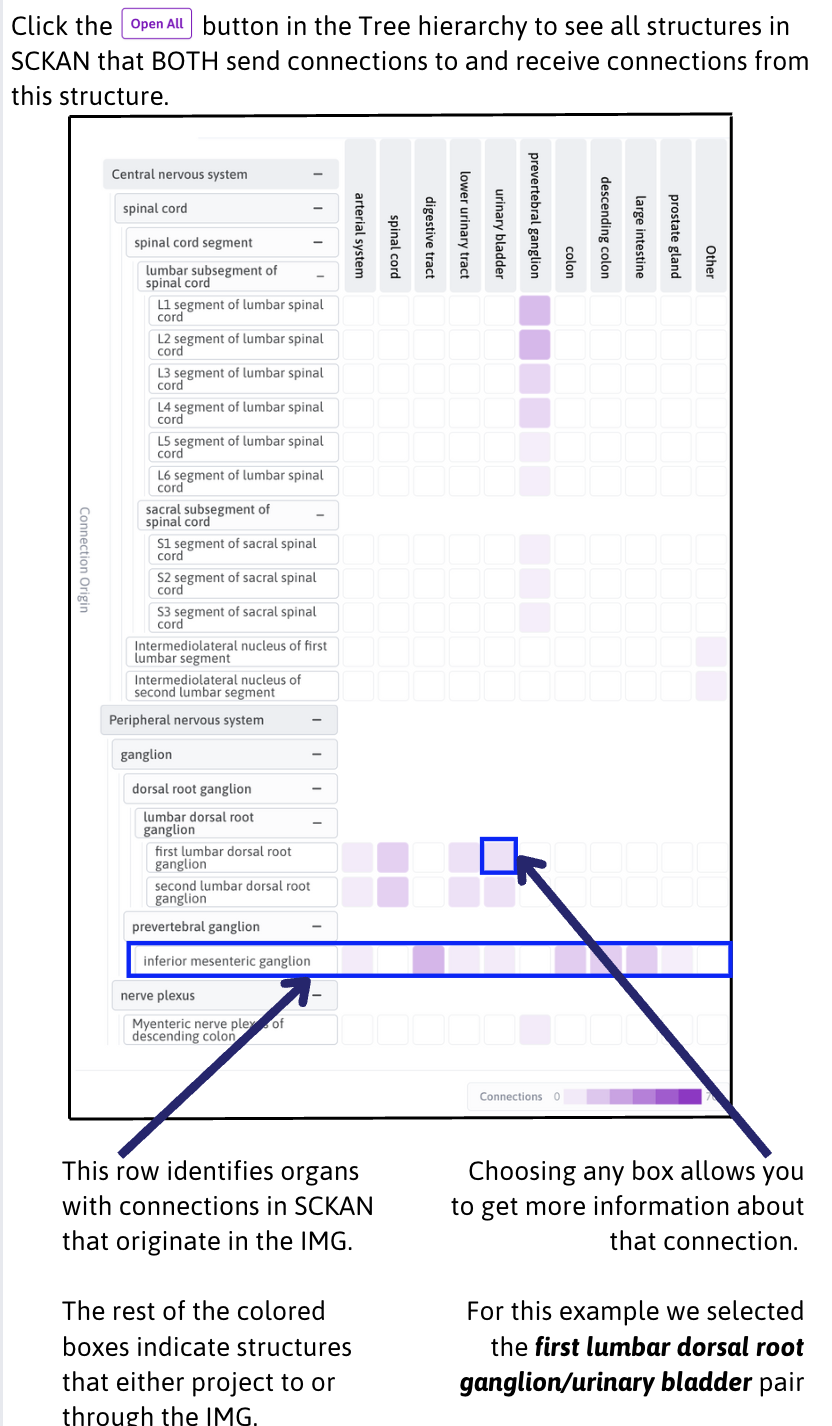

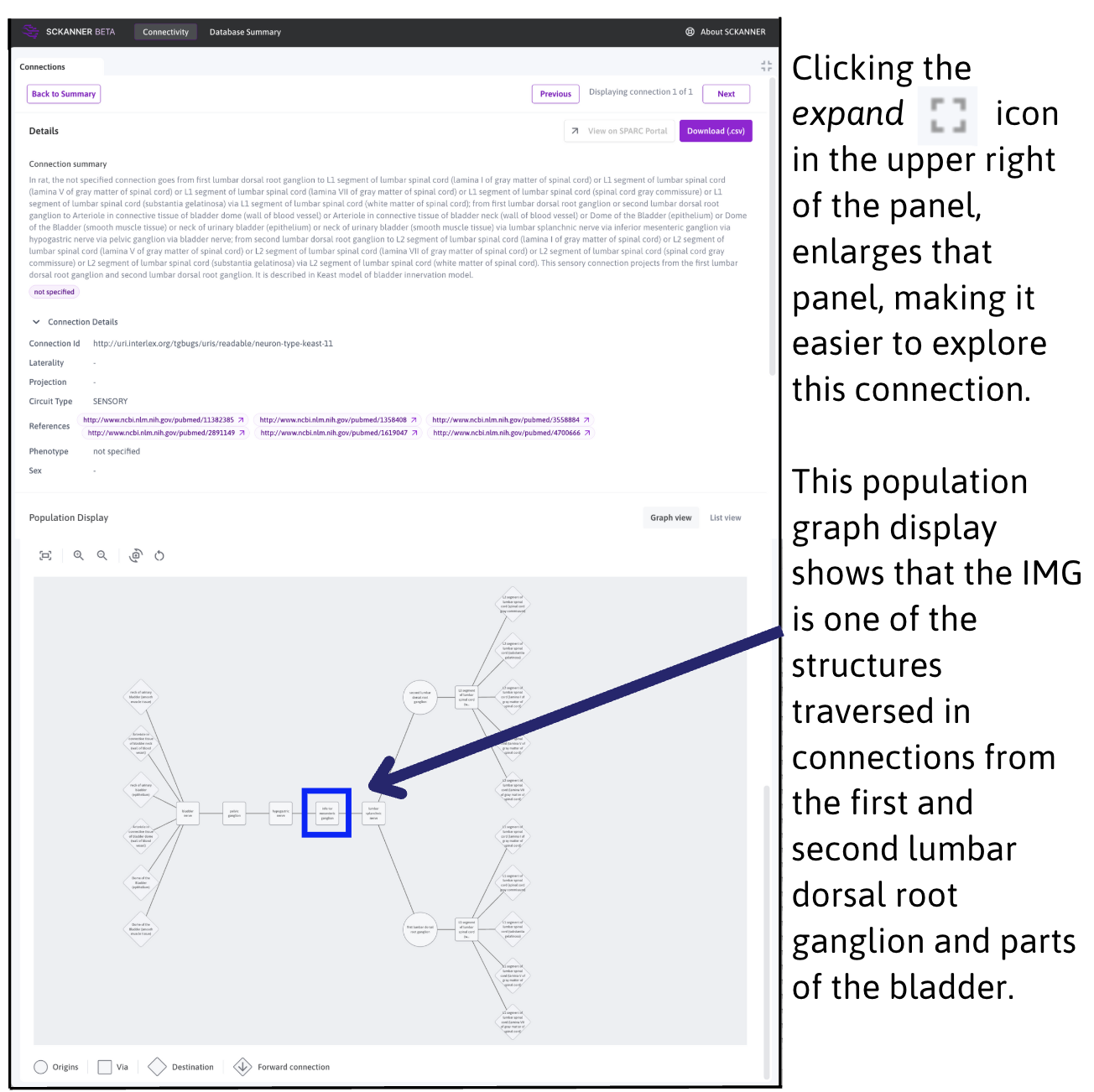

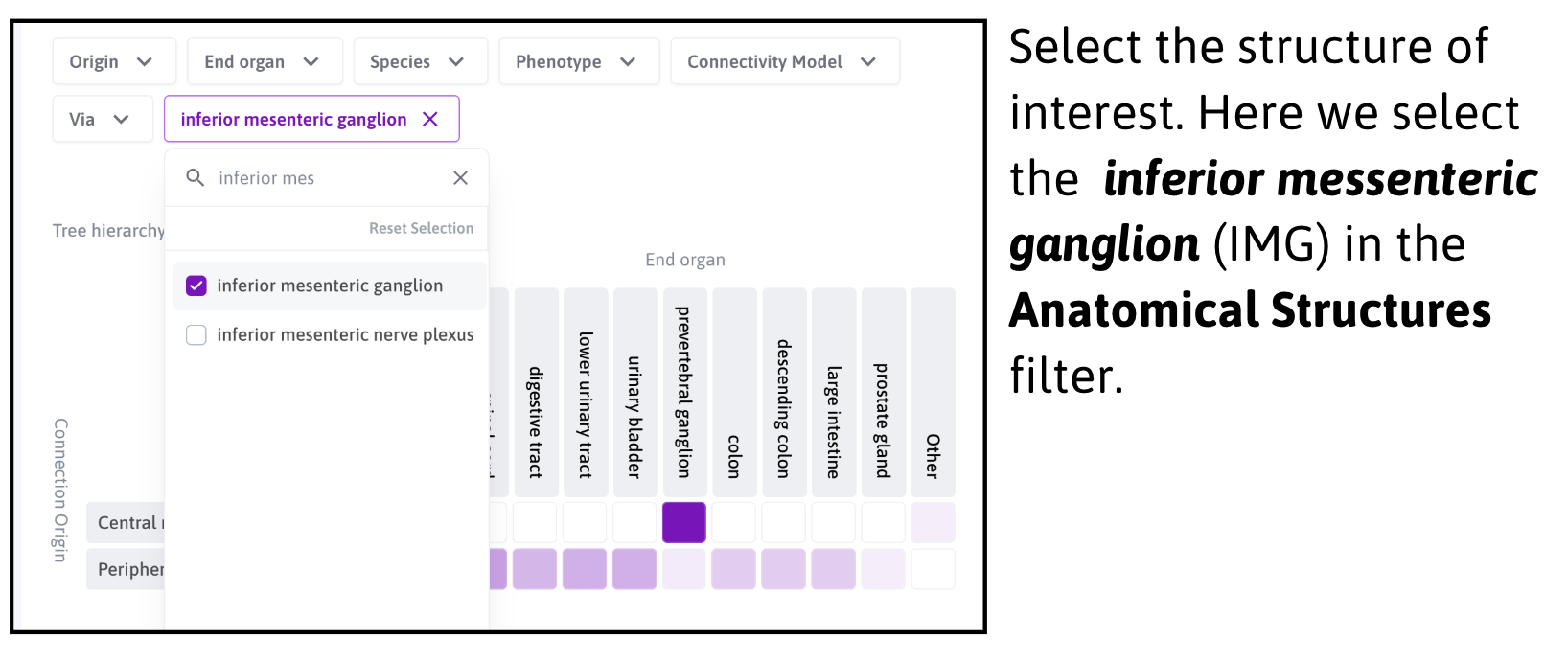

Question 3: What anatomical structures might be affected by perturbation of the inferior mesenteric ganglion (IMG)?

To answer this question, we want to look at any structures that send connections to the IMG OR receive connections to the IMG. Using the Anatomical Structures filter will return any structures that conect to it.
